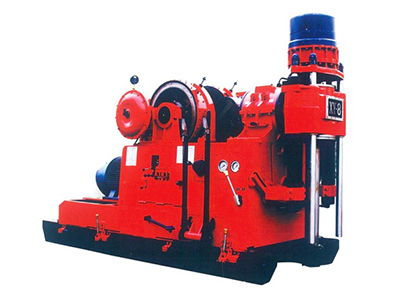

BI3000型鉆機是我公司新研制的一種大通徑(通徑118mm)孔深(1000m-3000m )巖心鉆機°主 要用于金屬、非金屬固體礦床勘探，金剛石小口徑鉆進，亦可用于大口徑合金鉆進?？摄@垂直孔和傾斜孔。 也可用于水文、油氣田的勘探及工程鉆孔。
BI3000 Core Drill is newly designed deep hole drilling equipment with large inner diameter of spindle.lt can make small hole drilling with diamond bits, as well as large hole drilling with carbide with bits. It is mainil used for expl-oration of soild metal and nonmetal deposits. It can also used for exploration of hydrology, oil and gas,engineer?ing drilling. This machine can make certical and inclined drilling.
BL3000b型鉆機是在我公司BL3000鉆機增加了轉盤，可作為傳統的立軸鉆機使用，又可作為轉盤鉆機使 用，實現一機多用廣泛用于地質、水文水井、煤田地質工程等行業。
BI3000b Core Drill is equipped additional rotary-table on the basis of BI3000 Core Drill. BI3000b Core Drill can beused as traditional spindle-type machine as well as rotary-table style.lt is widely used in geology.hydrology, water well and coalfied.

主要特點Main Features
BI3000型
U設計功率大，立抽扭矩大。
Powerful ouput design.large spindle torque.
立軸通徑大，雙油EE液壓給進.行程長。
Large Inner diameter of spindle. Double feeding cylinders and long stoko.
卡盤夾持力達。
Great clamping force of chuck.
卷揚機橫置設計,方便排繩.提升力大。
Hoist In horizontal arrangement, high lifting capacity and convenient operations.

BI3000b型
設計功率大，立抽、轉盤扭距大。Powerful output design, large 立軸通徑大，雙油41液壓給進.行程長c Large inner diameter of spindle, Double feeding cylinders and long stoke.
卡盤夾持力大。
Big clamping force of chuck.
卷竊機橫置設計,方便排繩.提升力大C
Hoist In horizontal arrangement, high lifting capacity and convenient operations.
轉盤，可實現一機多用。
Additional rotary-table, more functions

主要技術參數Main Specifications

BI3000型	鉆孔深度 Drilling Depth(m): 1000-3000
	機下鉆桿直徑 Drilling Rod(mm): 。50.5、。60、。71、4>73、。89、。114
	鉆孔傾角 Drilllig Angle： 90° -80°
	立軸轉速 Spindle Speed(rZmin): 正轉79、137、213、223、366、384、604、1024
	反轉51、144
	給進油缸上頂力 Pulling Capacity(kN): 300
	給進油缸給進力 Feeding Capacity(kN): 142
	給進油缸行程 Feeding Stroke ( mm ) : 1000
	卷揚單繩最大提升力 Max single-line Hoisting force ( kN ) : 130
	卷揚提升速度 Lifting Speed ( m/s ) : 0.57-7.58
	鋼絲繩直徑Steel wire (mm): 4>21.5
	容繩量 Rope Capacity ( m ) ： 160
	移車油缸行程 Skidding cylinder stroke(mm)： 690
	電動機動力 Motor Engine: 90kW Y2280M-4
	柴油機動力Diesel Engine: l32kW 6BTA5.9-C180
	主機重量 Weight (t) : 7.8
	外型尺寸 Dimensions ( LxWxH ) ( mm ) ： 4049x1754x2593
BI3000b 型	鉆孔深度 Drilling Depth(m): 1000-3000
	機下鉆桿直徑 Drilling Rod(mm): 4>50.5、。60、4>71、。73、。89、4>114
	鉆孔傾角 Drilllig Angle： 90° -80°
	立軸轉速 Spindle Speed(rZmin): 正轉79、137、213、223、266、384、604、1024
	反轉51、144
	轉盤轉速(r/min ): 正轉32、56、87、91、150、158、244、421
	反轉21、59
	給進油缸上頂力 Pulling Capacity(kN): 300
	給進油SI給進力 Feeding Capacity(kN): 142
	給進油Si行程 Feeding Stroke ( mm ) : 1000
	卷揚單繩最大提升力 Max single-line Hoisting force ( kN ) ： 130
	卷揚提升速度 Lifting Speed ( m/s ) : 0.57-7.58
	鋼絲繩直徑Steel wire (mm): 4>21.5
	容繩量 Rope Capacity ( m ) ： 160
	移車油 Si 行程 Skidding cylinder stroke(mm): 690
	電動機動力 Motor Engine: 90kW Y2280M-4
	柴油機動力Diesel Engine: 132kW 6BTA5.9-C180
	主機重量Weight (t)： 9
	外型尺寸 Dimensions ( LxWxH ) (mm)： 4395x1754x2713
